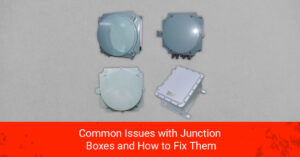

Common Issues with Junction Boxes and How to Fix Them

The author of this blog, Ramdas, is an expert writer in the field of flameproof products. He has done extensive research to bring the facts about junction boxes to help out readers.

A junction box is an important feature of an electrical system as it serves the different connections towards achieving the goal of a proper electrical distribution without leading to short circuits. Be it a wall-mounted junction box, a ceiling light junction box, or an outdoor one, all require proper setup and maintenance.

However, with time, junction boxes can develop issues. Safety hazards can arise because of loose connections, overheating, corrosion, and poor installations, among others. This article will attempt to help you diagnose problems related to junction boxes and offer practical solutions to resolve them.

Common Flameproof Junction Box Issues

1. Loose or Faulty Wiring Connections

Loose connections of wires or improperly joined wires are one of the more prominent issues within a junction box. These can result in myriad issues, ranging from flickering lights, and an inconsistent supply of electricity, all the way to extremely serious outages and even fires.

2. Overheating and Burn Marks

A heated junction box with burn markings traditionally indicates poor connections and an overloaded circuit. This, in general is more dangerous with Industrial and outdoor setups junction boxes, where power loads tend to be much greater.

3. Corrosion and Rust

A junction box located outdoors, or any box situated in wet areas, is prone to corrosion if it is exposed to moisture and water for extended periods of time. This would slowly weaken the internal connections and wires, potentially resulting in short circuits.

4. Incorrect Junction Box Size

Heat buildup is common in poorly sized junction boxes. Small boxes with insufficient reserved areas will overheat due to too many wires and connections. An appropriate box will be designed to safely accommodate the wiring.

5. Missing or Improper Junction Box Cover

Dust, moisture, and even physical contact can corrode the wiring within the box when the box isn’t properly covered or closed. As a result, the corrosion can lead to faulty electrical connections within the box.

6. Inadequate Grounding

Other than being a potential shock hazard, poorly grounded junction boxes can be extremely dangerous, especially with ceiling lights and fans. Lights and sockets need frequent changing, which results in wear and tear; this could leave them exposed to shocks without proper grounding.

How to Fix Junction Box Issues

1. Tighten Loose Connections

All external power should be turned off before inspecting the junction box. Make certain all wires are held in place by high-quality wire nuts, and loose screws should be tightened.

2. Replace Burnt or Overheated Boxes

Always check the wiring if you suspect they are overheating. If the electrical load is too high, a stronger junction box will be needed to prevent overheating.

3. Prevent Corrosion

When it comes to outdoor junction boxes, use materials that will not corrode, such as stainless steel or PVC. Furthermore, apply anti-corrosion spray to the metal joints.

4. Use the Right Box Size

Select the appropriate junction box types determined by the wire quantity. If there are too many wires in the box, overheating may occur and short circuits can also happen.

5. Secure the Junction Box Cover

Internal junction wiring needs to be protected with a proper junction box cover. This is critical where an industrial junction box is mounted on the wall or where it would get exposed to dust and water; so, in essence, it is crucial for any junction box.

6. Ensure Proper Grounding

The ground wire should be added to the metal box or grounding screw. In the case of a junction box for a switch, ceiling light, or fan, grounding is essential for preventing electrical danger.

Types of Junction Boxes and Their Maintenance

Standard Metal vs. Flameproof Junction Boxes

Standard metal junction boxes are frequently used in a variety of installations, but their protection in hazardous environments is weak. On the other hand, flameproof junction boxes are designed with the purpose of permitting neither sparking nor flames to exit and thus, prevent the ignition of flammable gases or dust.

Outdoor Flameproof Junction Boxes

These preventative measures minimise the risk posed by explosive and environmental threats. Routine maintenance consists of inspection of gaskets, verification that covers are securely fastened, and assessment of weather-related deterioration.

Ceiling and Wall Mounted Flameproof Junction Boxes

Mounding is crucial in maintaining a flameproof rating which is why attempts should be made to eliminate any movement to maintain the tautness of the box. The ceiling-mounted boxes will most likely require additional aids for other devices to be installed for counter-explosion lighting or simply heavy-duty motor controls.

Industrial Flameproof Junction Boxes

Placed in hazardous industrial locations with frequent fires or potential explosions, including chemical plants and oil refineries. It is necessary to perform regular checks to monitor progress of wear, attend to gaskets and bolt conditions, and validate the retention of flameproof attributes.

Also read: Flameproof Junction Box: A Detailed Guide

Special Cases: Flameproof Junction Box for Specific Uses

Flameproof Junction Box for a Ceiling Light

  • It should be rigid enough to carry the weight of the fixture.
  • Make sure wires do not get loose to enhance proper connection.

Flameproof Junction Box for a Fan

  • Has to be designated for ceiling fan support.
  • It must be firmly anchored to stop movement.

FlameproofJunction Box for Switches and Sockets

  • Permit sufficient room for wiring.
  • Do not exceed the limiting amp to avoid overheating.

Safety Tips for Flameproof Junction Boxes Maintenance

  • Make it a point to switch off the power supply before attempting inspection or any fix on a flameproof junction box electrical issue.
  • Always use insulated tools to avoid getting shocked.
  • Watch out for signs of overheating or corrosion from time to time.
  • Make sure all connectors for the junction boxes are sufficiently tightened and insulated.
  • Stay hazard-free by not violating junction box installation rules in compliance with safety codes.

Read our detailed guide on: The Importance of Regular Maintenance for Flameproof Equipment

Conclusion

The junction box poses a risk only if not installed or maintained correctly. Simple issues such as loose connections, overheating, and corrosion are severe risks if neglected. Scheduled inspections, correct installation of junction boxes, and use of proper materials would eliminate such problems.

Safety measures for reliability apply in every case, whether it is a junction box for a ceiling light, a switch, or even an outdoor installation. A good quality junction box from brands like Bharat Flameproof should always be preferred.

FAQs

The primary purpose of a junction box is to encase electrical connections to minimise the threat of them short-circuiting and causing a fire or coming into contact with live wires.

Common signs of a faulty electrical junction box are flickering lights, an unexplained burning smell, tripped breakers, or any burn marks that can be seen.

Yes, as long as the box is weatherproof. Any outside junction box must be sealed adequately to prevent any water from entering.
